Carbon Steel Forged Fittings

Carbon Steel Forged Fittings

Steelvron is a trusted Carbon Steel Forged Fittings Supplier, Manufacturer, and Exporter, delivering high-quality forged fittings known for their robustness, cost-effectiveness, and adaptability across multiple industries. Carbon Steel Forged Fittings are widely used in construction, oil & gas, power generation, shipbuilding, and infrastructure projects, owing to their superior mechanical strength and long service life.

Overview

Manufactured using premium-grade carbon steel, these fittings provide excellent performance in high-pressure and high-temperature environments. With advanced forging techniques and stringent quality checks, Steelvron ensures fittings that offer dimensional accuracy, leak-proof connections, and durability even under the toughest conditions.

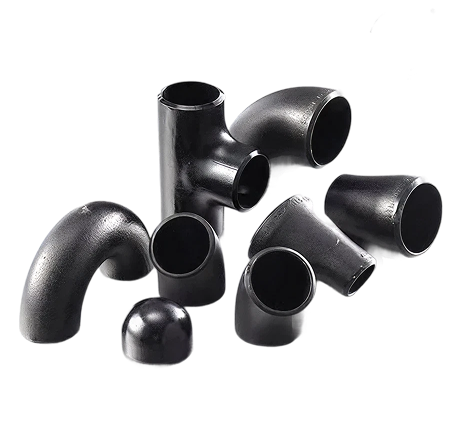

We offer a wide variety of Carbon Steel Forged Fittings including elbows, tees, couplings, unions, crosses, bushings, plugs, and custom forged components, designed to meet diverse industrial applications. All fittings are manufactured in compliance with global

Technical Specifications of Carbon Steel Forged Fittings

Standards:

ASTM A105 / ASME SA105, ASTM A350 LF2, MSS-SP-79, MSS-SP-83, ANSI, DIN, EN, JIS

Grades Available:

ASTM A105, ASTM A350 LF2, ASTM A694 F42 – F70

Forms:

Elbows, Tees, Crosses, Couplings, Unions, Plugs, Bushings, Custom Forged Fittings

Size Range:

½” (15 NB) to 6” (150 NB)

Pressure Class:

2000, 3000, 6000, 9000 LBS

Finish:

Black Coated, Galvanized, Varnished, CNC Machined

Chemical Properties Of Carbon Steel Forged Fittings

Grade

C (max)

Mn (max)

Si (max)

P (max)

S (max)

Cr (max)

Ni (max)

Mo (max)

Cu (max)

ASTM A105

0.35

0.60–1.05

0.10–0.35

0.035

0.040

0.30

0.40

0.12

0.40

ASTM A350 LF2

0.30

0.60–1.35

0.15–0.30

0.025

0.025

0.30

0.40

0.12

0.40

Physical Properties of Carbon Steel Forged Fittings

Property

ASTM A105

ASTM A350 LF2

Density (g/cm³)

7.85

7.85

Tensile Strength (MPa)

485–655

485–655

Yield Strength (MPa)

250

250

Elongation (%)

22

22

Hardness (HB)

170–220

170–220

Impact Toughness (°C)

Ambient

–46°C Tested

Types Of Carbon Steel Forged Fittings We Offer

Materials We Offer











FAQ

Your complete guide to understanding Steelvron’s products, materials, certifications, and industrial applications worldwide

Why choose Steelvron as your Carbon Steel Forged Fittings Supplier?
arrow

Steelvron offers robust and cost-effective forged fittings with superior mechanical strength and compliance with ASTM, ASME, DIN, and EN standards.

Which grades of Carbon Steel Forged Fittings do you supply?
arrow

We supply ASTM A105, ASTM A350 LF2, and ASTM A694 (F42–F70) grades.

What is the size and pressure class range available?
arrow

Sizes range from ½” to 6” with pressure ratings of 2000, 3000, 6000, and 9000 LBS.

Are Carbon Steel Forged Fittings suitable for high-pressure applications?
arrow

Yes, they are widely used in high-pressure and high-temperature environments, especially in oil, gas, and power industries.

Can Steelvron provide customized forged fittings?
arrow

Absolutely, we manufacture customized fittings as per client drawings and project-specific requirements.
