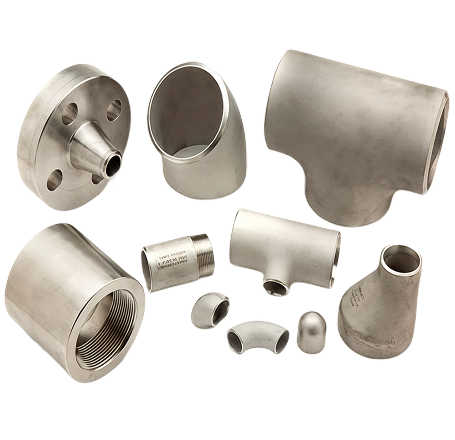

Inconel or Incoloy Forged Fittings

Steelvron is a trusted Inconel & Incoloy Forged Fittings Supplier, Manufacturer, and Exporter, delivering high-performance forged fittings engineered for extreme heat, pressure, and corrosive environments. These alloys are widely used in aerospace, petrochemical, chemical processing, marine, and power generation industries, where conventional materials fail to withstand harsh conditions.

Overview

Our Inconel and Incoloy forged fittings offer exceptional oxidation resistance, thermal stability, and mechanical strength, making them ideal for high-temperature pipelines, reactors, boilers, and marine equipment. Manufactured using precision forging techniques and stringent quality checks, Steelvron ensures fittings that provide leak-proof connections, dimensional accuracy, and long-term durability, fully compliant with global standards like ASTM, ASME, DIN, EN, and JIS.

We supply a comprehensive range of forged fittings, including elbows, tees, reducers, caps, crosses, couplings, and customized components, designed to meet the specific requirements of critical and high-performance systems.

Technical Specifications of Inconel or Incoloy Forged Fittings

Standards:

ASTM A182 / ASME SA182, MSS-SP-79, MSS-SP-83, ANSI, DIN, EN, JIS

Grades Available:

Inconel 600 / 601 / 625 / 718, Incoloy 800 / 800HT / 825

Forms:

Elbows, Tees, Crosses, Reducers, Couplings, Unions, Plugs, Bushings, Custom Forged Fittings

Size Range:

½” (15 NB) to 6” (150 NB)

Pressure Class:

150, 300, 600, 900, 1500, 2500 LBS

Finish:

Polished, Pickled & Passivated, CNC Machined, Heat-Treated

Chemical Properties Of Inconel or Incoloy Forged Fittings

Grade	C (max)	Mn (max)	Si (max)	P (max)	S (max)	Cr (min)	Ni (min)	Fe	Mo (min)	Other
Inconel 600	0.15	1.0	0.5	0.015	0.015	14–17	72	Balance	–	–
Inconel 625	0.10	0.50	0.50	0.015	0.015	20–23	58	Balance	8–10	Nb+Ta 3.15–4.15
Inconel 718	0.08	0.35	0.35	0.015	0.015	17–21	50–55	Balance	2.8–3.3	Nb 4.75–5.5, Ti 0.65–1.15
Incoloy 800	0.10	1.0	0.5	0.035	0.015	19–23	30–35	Balance	–	–
Incoloy 825	0.05	1.0	0.5	0.035	0.015	19–23	38–46	Balance	2.0–3.0	Cu 1.5–3.0

Physical Properties of Inconel or Incoloy Forged Fittings

Property

Inconel 600

Inconel 625

Inconel 718

Incoloy 800

Incoloy 825

Density (g/cm³)

8.44

8.44

8.19

8.0

8.0

Tensile Strength (MPa)

515–750

620–930

950–1200

515–700

550–750

Yield Strength (MPa)

140–310

275–550

1035–1240

275–400

310–450

Elongation (%)

30–40

30

12–25

30

30

Hardness (HB)

150–200

200–260

330–370

170–220

180–230

Operating Temp

Up to 980°C

Up to 982°C

Up to 700°C

Up to 1100°C

Up to 980°C

Types Of Inconel or Incoloy Forged Fittings We Offer

Inconel or Incoloy Pipe Cap Fitting

Inconel or Incoloy Pipe Cross Fitting

Inconel or Incoloy Pipe Bend Fitting

Inconel or Incoloy Short Stub End Fitting

Inconel or Incoloy Long Stub End Fitting

Inconel or Incoloy Concentric Reducer Fitting

Inconel or Incoloy Eccentric Reducer Fitting

Inconel or Incoloy Tee Fitting

Inconel or Incoloy Elbow Fitting

Materials We Offer

Carbon Steel Forged Fittings

Duplex or Super Duplex Forged Fittings

Duplex Steel 31803/32205

Super Duplex S32760/S32750

Titanium Forged Fittings

Stainless Steel Forged Fittings

FAQ

Your complete guide to understanding Steelvron’s products, materials, certifications, and industrial applications worldwide

Why choose Steelvron as your Inconel & Incoloy Forged Fittings Supplier?

Steelvron provides high-quality, heat-resistant alloy fittings with exceptional durability and compliance with ASTM, ASME, DIN, EN, and JIS standards.

Which grades of Inconel & Incoloy Forged Fittings do you supply?

We supply Inconel 600 / 601 / 625 / 718 and Incoloy 800 / 800HT / 825.

What is the size and pressure class range available?

Sizes range from ½” (15 NB) to 6” (150 NB) with pressure ratings of 150, 300, 600, 900, 1500, and 2500 LBS.

Are these alloy fittings suitable for extreme heat and corrosive environments?

Yes, these fittings are ideal for high-temperature, corrosive, and high-pressure applications in aerospace, petrochemical, and marine sectors.

Can Steelvron provide customized alloy forged fittings?

Yes, we manufacture tailor-made forged fittings as per client specifications and project requirements, ensuring precise fit and performance.

Why Choose Us?

Global Expertise

Trusted manufacturer, supplier, and exporter of Inconel or Incoloy Forged Fittings worldwide.

Complete Range

Comprehensive portfolio covering all Inconel or Incoloy Forged Fittings materials and types, ensuring broad compatibility.

Certified Quality

ISO-certified facilities ensure strict manufacturing and testing, delivering precision products consistently.

International Standards

Products meet ASME, ANSI, DIN, EN, BS, and JIS norms, ensuring acceptance.

Custom Solutions

Supplying standard and tailor-made Inconel or Incoloy Forged Fittings, crafted to match exact specifications.

Worldwide Reach

Exporting to 50+ countries with a proven record of client satisfaction.

Property	Inconel 600	Inconel 625	Inconel 718	Incoloy 800	Incoloy 825
Density (g/cm³)	8.44	8.44	8.19	8.0	8.0
Tensile Strength (MPa)	515–750	620–930	950–1200	515–700	550–750
Yield Strength (MPa)	140–310	275–550	1035–1240	275–400	310–450
Elongation (%)	30–40	30	12–25	30	30
Hardness (HB)	150–200	200–260	330–370	170–220	180–230
Operating Temp	Up to 980°C	Up to 982°C	Up to 700°C	Up to 1100°C	Up to 980°C
