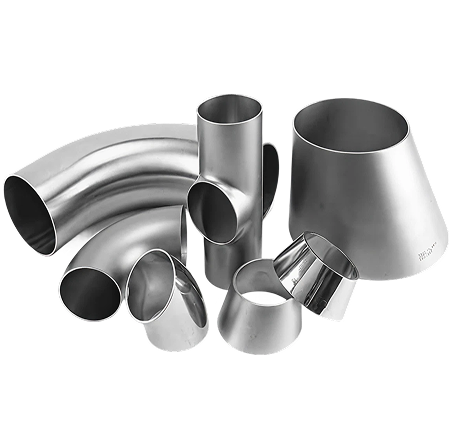

Duplex or Super Duplex Forged Fittings

Duplex or Super Duplex Forged Fittings

Steelvron is a leading Duplex and Super Duplex Forged Fittings Supplier, Manufacturer, and Exporter, delivering fittings engineered for exceptional strength, superior toughness, and excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. These fittings are particularly valued in offshore platforms, chemical processing plants, desalination units, and power generation systems where extreme durability is required.

Overview Technical Specifications Properties Types Materials FAQ

Overview

Our Duplex and Super Duplex Forged Fittings are manufactured using high-quality raw materials and precision forging techniques, ensuring dimensional accuracy, long service life, and leak-proof performance. With balanced microstructure (austenite and ferrite), Duplex and Super Duplex grades provide twice the strength of standard stainless steel while maintaining impressive corrosion resistance in chloride-rich and acidic environments.

Available in grades such as Duplex 31803/32205 and Super Duplex S32750/S32760, Steelvron offers a wide range of forged fittings including elbows, tees, couplings, crosses, unions, bushings, plugs, and custom designs as per client specifications. Each fitting is tested to meet international standards such as ASTM, ASME, DIN, and EN, making them suitable for demanding industrial applications.



Technical Specifications of Duplex or Super Duplex Forged Fittings

Standards:

ASTM A182 / ASME SA182, ANSI, DIN, EN, JIS

Grades Available:

Duplex 31803, Duplex 32205, Super Duplex S32750, Super Duplex S32760

Forms:

Elbows, Tees, Couplings, Crosses, Unions, Plugs, Bushings, Custom Forged Components

Size Range:

½” (15 NB) to 6” (150 NB)

Pressure Class:

2000, 3000, 6000, 9000 LBS

Finish:

CNC Machined, Smooth, Pickled, Polished

Chemical Properties Of Duplex or Super Duplex Forged Fittings

Grade

C (max)

Mn (max)

Si (max)

P (max)

S (max)

Cr

Ni

Mo

N (max)

Duplex 31803

0.03

2.0

1.0

0.030

0.020

21–23

4.5–6.5

2.5–3.5

0.08–0.20

Duplex 32205

0.03

2.0

1.0

0.030

0.020

22–23

4.5–6.5

3.0–3.5

0.14–0.20

Super Duplex S32750

0.03

1.2

0.8

0.035

0.020

24–26

6.0–8.0

3.0–5.0

0.24–0.32

Super Duplex S32760

0.03

1.0

1.0

0.030

0.010

24–26

6.0–8.0

3.0–4.5

0.20–0.30

Physical Properties of Duplex or Super Duplex Forged Fittings

Property

Duplex 31803/32205

Super Duplex S32750

Super Duplex S32760

Density (g/cm³)

7.8

7.8

7.8

Tensile Strength (MPa)

620–800

750–930

750–930

Yield Strength (MPa)

450

550

550

Elongation (%)

25

25

25

Hardness (HB)

≤ 290

≤ 310

≤ 310

Melting Point (°C)

~1350

~1350

~1350

Types Of Duplex or Super Duplex Forged Fittings We Offer

Duplex or Super Duplex Pipe Cap Fitting
Arrow
Duplex or Super Duplex Pipe Cross Fitting
Arrow
Duplex or Super Duplex Pipe Bend Fitting
Arrow
Duplex or Super Duplex Short Stub End Fitting
Arrow
Duplex or Super Duplex Long Stub End Fitting
Arrow
Duplex or Super Duplex Concentric Reducer Fitting
Arrow
Duplex or Super Duplex Eccentric Reducer Fitting
Arrow
Duplex or Super Duplex Tee Fitting
Arrow
Duplex or Super Duplex Elbow Fitting
Arrow

Materials We Offer

Alloy 20 Forged Fittings

Alloy 20

Nickel Forged Fittings

Nickel 200/201

Hastelloy Forged Fittings

Hastelloy c22/c276

Monel Forged Fittings

Monel 400/K500

Alloy Steel Forged Fittings

Alloy steel

Copper Nickel Forged Fittings

Copper Nickel 70/30
Copper Nickel 90/10

Inconel or Incoloy Forged Fittings

Inconel 600/601/625/718
Incoloy 800/800HT/825

Carbon Steel Forged Fittings

Carbon Steel Forged Fittings

Duplex or Super Duplex Forged Fittings

Duplex Steel 31803/32205
Super Duplex S32760/S32750

Titanium Forged Fittings

Titanium Gr 1
Titanium Gr 2
Titanium Gr 5
Titanium Gr 9

Stainless Steel Forged Fittings

SS 304/304L/304H
SS 347/347H
SS 309/310/310S
SS 347/347H
SS 316/316L/316Ti
SS 904L
SS 317/317L

FAQ

Your complete guide to understanding Steelvron’s products, materials, certifications, and industrial applications worldwide

Why choose Steelvron as a Duplex and Super Duplex Forged Fittings Supplier?
arrow

Steelvron delivers forged fittings with high strength, excellent resistance to corrosion, and compliance with ASTM, ASME, and EN standards for maximum reliability.

Which grades of Duplex and Super Duplex Forged Fittings do you supply?
arrow

We supply Duplex 31803/32205 and Super Duplex S32750/S32760 grades.

What is the size range and pressure class available?
arrow

Sizes range from ½” to 6” with pressure ratings of 2000, 3000, 6000, and 9000 LBS.

In which industries are these fittings commonly used?
arrow

They are widely used in offshore oil & gas, desalination plants, chemical industries, and marine engineering.

Can Steelvron manufacture customized Duplex and Super Duplex Forged Fittings?
arrow

Yes, we provide customized fittings as per client drawings and project requirements.
