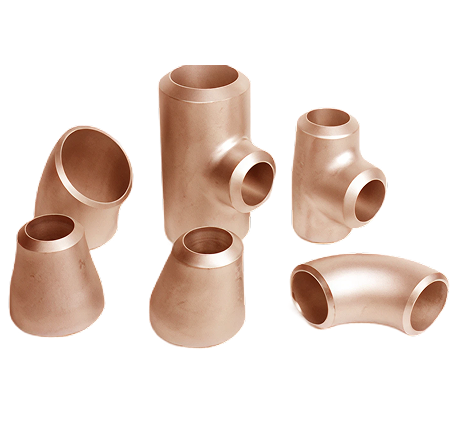

Copper Nickel Forged Fittings

Steelvron is a leading Copper Nickel Forged Fittings Supplier, Manufacturer, and Exporter, offering high-performance forged fittings specifically engineered for corrosion resistance, durability, and reliability in marine and industrial applications. Copper Nickel alloys are renowned for their exceptional resistance to seawater corrosion, biofouling, and erosion, making them ideal for shipbuilding, offshore structures, desalination plants, and power generation systems.

Overview

Our Copper Nickel Forged Fittings are crafted from premium-grade 70/30 and 90/10 copper-nickel alloys, providing outstanding mechanical strength, thermal conductivity, and resistance to saltwater and acidic environments. These fittings are designed to withstand high-pressure pipelines and extreme operating conditions, ensuring longevity and reduced maintenance costs.

Manufactured using advanced forging techniques and rigorous quality inspections, Steelvron guarantees dimensional accuracy, leak-proof connections, and superior performance across all piping networks. Compliant with ASTM, ASME, DIN, EN, and JIS standards, our Copper Nickel Forged Fittings are trusted by clients in the marine, desalination, oil & gas, and power sectors worldwide.

We offer a comprehensive range of forged fittings, including elbows, tees, reducers, caps, crosses, couplings, and custom-designed components, tailored to meet complex system requirements and project-specific standards. Choosing Steelvron ensures reliable, long-lasting, and high-efficiency solutions for all copper-nickel piping applications.

Technical Specifications of Copper Nickel Forged Fittings

Standards:

ASTM B466 / ASME SB466, MSS-SP-79, MSS-SP-83, ANSI, DIN, EN, JIS

Grades Available:

Copper Nickel 70/30, Copper Nickel 90/10

Forms:

Elbows, Tees, Crosses, Reducers, Couplings, Unions, Plugs, Bushings, Custom Forged Fittings

Size Range:

½” (15 NB) to 6” (150 NB)

Pressure Class:

150, 300, 600, 900 LBS

Finish:

Polished, CNC Machined, Pickled & Passivated

Chemical Properties Of Copper Nickel Forged Fittings

Grade	Cu (min)	Ni (min)	Fe (max)	Mn (max)	C (max)	Other
Copper Nickel 70/30	70	30	1.0	1.0	0.15	–
Copper Nickel 90/10	90	10	1.0	1.0	0.15	–

Physical Properties of Copper Nickel Forged Fittings

Property

Copper Nickel 70/30

Copper Nickel 90/10

Density (g/cm³)

8.9

8.9

Tensile Strength (MPa)

380–550

380–520

Yield Strength (MPa)

170–250

150–230

Elongation (%)

30–50

30–50

Hardness (HB)

70–120

60–110

Operating Temp

Up to 250°C

Up to 250°C

Types Of Copper Nickel Forged Fittings We Offer

Copper Nickel Pipe Cap Fitting

Copper Nickel Pipe Cross Fitting

Copper Nickel Pipe Bend Fitting

Copper Nickel Short Stub End Fitting

Copper Nickel Long Stub End Fitting

Copper Nickel Concentric Reducer Fitting

Copper Nickel Eccentric Reducer Fitting

Copper Nickel Tee Fitting

Copper Nickel Elbow Fitting

Materials We Offer

Carbon Steel Forged Fittings

Duplex or Super Duplex Forged Fittings

Duplex Steel 31803/32205

Super Duplex S32760/S32750

Titanium Forged Fittings

Stainless Steel Forged Fittings

FAQ

Your complete guide to understanding Steelvron’s products, materials, certifications, and industrial applications worldwide

Why choose Steelvron as your Copper Nickel Forged Fittings Supplier?

Steelvron provides corrosion-resistant, durable Copper Nickel forged fittings with compliance to ASTM, ASME, DIN, EN, and JIS standards, ensuring long-lasting and reliable performance.

Which grades of Copper Nickel Forged Fittings do you supply?

We supply Copper Nickel 70/30 and Copper Nickel 90/10.

What is the size and pressure class range available?

Sizes range from ½” (15 NB) to 6” (150 NB) with pressure ratings of 150, 300, 600, and 900 LBS.

Are Copper Nickel Forged Fittings suitable for seawater applications?

Yes, they offer excellent resistance to seawater corrosion, biofouling, and erosion, making them ideal for marine, desalination, and offshore pipelines.

Can Steelvron provide customized Copper Nickel forged fittings?

Yes, we manufacture tailor-made fittings according to client specifications and project requirements, ensuring precise fit and optimal performance.

Why Choose Us?

Global Expertise

Trusted manufacturer, supplier, and exporter of Copper Nickel Forged Fittings worldwide.

Complete Range

Comprehensive portfolio covering all Copper Nickel Forged Fittings materials and types, ensuring broad compatibility.

Certified Quality

ISO-certified facilities ensure strict manufacturing and testing, delivering precision products consistently.

International Standards

Products meet ASME, ANSI, DIN, EN, BS, and JIS norms, ensuring acceptance.

Custom Solutions

Supplying standard and tailor-made Copper Nickel Forged Fittings, crafted to match exact specifications.

Worldwide Reach

Exporting to 50+ countries with a proven record of client satisfaction.

Property	Copper Nickel 70/30	Copper Nickel 90/10
Density (g/cm³)	8.9	8.9
Tensile Strength (MPa)	380–550	380–520
Yield Strength (MPa)	170–250	150–230
Elongation (%)	30–50	30–50
Hardness (HB)	70–120	60–110
Operating Temp	Up to 250°C	Up to 250°C
