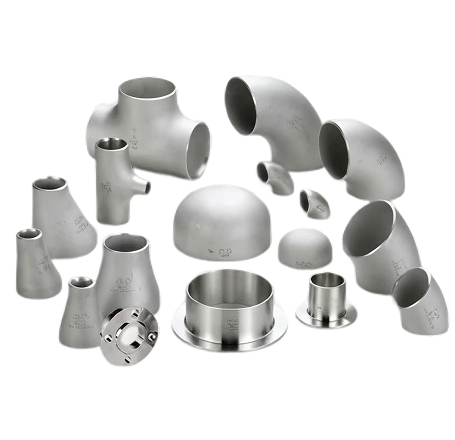

Monel Forged Fittings

Steelvron is a leading Monel Forged Fittings Supplier, Manufacturer, and Exporter, offering high-strength, corrosion-resistant forged fittings designed for extreme marine, oil, and aerospace environments. Monel alloys are renowned for their exceptional resistance to seawater, saltwater corrosion, and acidic conditions, making them ideal for shipbuilding, offshore oil & gas platforms, desalination plants, and aerospace systems.

Overview

Our Monel Forged Fittings are manufactured from premium-grade Monel 400 and Monel K500 alloys, providing superior mechanical strength, toughness, and thermal stability under extreme operating conditions. These fittings are specifically engineered for high-pressure pipelines, high-temperature applications, and critical industrial systems, ensuring long-lasting performance and minimal maintenance.

Steelvron utilizes advanced forging techniques and strict quality control to deliver fittings with precise dimensions, leak-proof joints, and consistent wall thickness. All products comply with ASTM, ASME, DIN, EN, and JIS standards, offering safety, reliability, and operational efficiency for demanding industrial applications.

We offer a wide range of Monel Forged Fittings, including elbows, tees, reducers, caps, crosses, couplings, and custom-designed components, tailored to meet project-specific requirements and complex piping configurations. Choosing Steelvron ensures robust, corrosion-resistant solutions for marine, oil, and aerospace pipelines.

Technical Specifications of Monel Forged Fittings

Standards:

ASTM B164 / ASME SB164, MSS-SP-79, MSS-SP-83, ANSI, DIN, EN, JIS

Grades Available:

Monel 400, Monel K500

Forms:

Elbows, Tees, Crosses, Reducers, Couplings, Unions, Plugs, Bushings, Custom Forged Fittings

Size Range:

½” (15 NB) to 6” (150 NB)

Pressure Class:

150, 300, 600, 900 LBS

Finish:

Polished, CNC Machined, Pickled & Passivated

Chemical Properties Of Monel Forged Fittings

Grade	Ni (min)	Cu (balance)	Fe (max)	Mn (max)	C (max)	Other
Monel 400	63	Balance	2.5	1.0	0.30	–
Monel K500	63	Balance	2.5	1.0	0.30	Al + Ti for precipitation hardening

Physical Properties of Monel Forged Fittings

Property

Monel 400

Monel K500

Density (g/cm³)

8.8

8.8

Tensile Strength (MPa)

550–690

860–1000

Yield Strength (MPa)

240

550–700

Elongation (%)

30–40

15–30

Hardness (HB)

150–200

250–300

Operating Temp

Up to 500°C

Up to 540°C

Types Of Monel Forged Fittings We Offer

Monel Pipe Cap Fitting

Monel Pipe Cross Fitting

Monel Pipe Bend Fitting

Monel Short Stub End Fitting

Monel Long Stub End Fitting

Monel Concentric Reducer Fitting

Monel Eccentric Reducer Fitting

Monel Tee Fitting

Monel Elbow Fitting

Materials We Offer

Carbon Steel Forged Fittings

Duplex or Super Duplex Forged Fittings

Duplex Steel 31803/32205

Super Duplex S32760/S32750

Titanium Forged Fittings

Stainless Steel Forged Fittings

FAQ

Your complete guide to understanding Steelvron’s products, materials, certifications, and industrial applications worldwide

Why choose Steelvron as your Monel Forged Fittings Supplier?

Steelvron provides corrosion-resistant, high-strength Monel forged fittings with compliance to ASTM, ASME, DIN, EN, and JIS standards, ensuring long-term reliability.

Which grades of Monel Forged Fittings do you supply?

We supply Monel 400 and Monel K500.

What is the size and pressure class range available?

Sizes range from ½” (15 NB) to 6” (150 NB) with pressure ratings of 150, 300, 600, and 900 LBS.

Are Monel Forged Fittings suitable for seawater and corrosive environments?

Yes, Monel alloys are highly resistant to seawater corrosion, biofouling, and acidic conditions, making them ideal for marine, oil, and aerospace applications.

Can Steelvron provide customized Monel forged fittings?

Yes, we manufacture custom fittings as per client specifications and project requirements for precise fit and optimal performance.

Why Choose Us?

Global Expertise

Trusted manufacturer, supplier, and exporter of Monel Forged Fittings worldwide.

Complete Range

Comprehensive portfolio covering all Monel Forged Fittings materials and types, ensuring broad compatibility.

Certified Quality

ISO-certified facilities ensure strict manufacturing and testing, delivering precision products consistently.

International Standards

Products meet ASME, ANSI, DIN, EN, BS, and JIS norms, ensuring acceptance.

Custom Solutions

Supplying standard and tailor-made Monel Forged Fittings, crafted to match exact specifications.

Worldwide Reach

Exporting to 50+ countries with a proven record of client satisfaction.

Property	Monel 400	Monel K500
Density (g/cm³)	8.8	8.8
Tensile Strength (MPa)	550–690	860–1000
Yield Strength (MPa)	240	550–700
Elongation (%)	30–40	15–30
Hardness (HB)	150–200	250–300
Operating Temp	Up to 500°C	Up to 540°C
