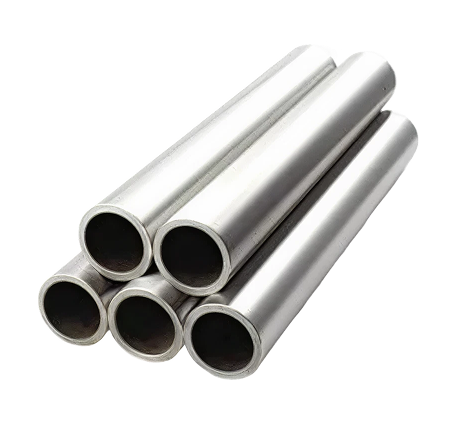

Hastelloy Pipes and Tubes

Steelvron is a trusted Hastelloy Pipes & Tubes Supplier, Manufacturer, and Exporter, providing premium-grade piping solutions specifically engineered for corrosive and high-temperature environments. Hastelloy Pipes and Tubes are widely recognized for their exceptional chemical resistance, high mechanical strength, and long-term durability, making them ideal for chemical processing plants, power generation, marine systems, and energy industries.

Overview

Available in grades such as Hastelloy C22 and Hastelloy C276, Steelvron ensures that each product meets stringent industry standards, delivering reliable performance even in aggressive chemical and oxidizing environments.

Manufactured according to ASTM, ASME, DIN, EN, and JIS standards, our Hastelloy Pipes & Tubes are available in Seamless, Welded (ERW), Precision / Cold Drawn, and Polished forms, with precise dimensional tolerances and smooth surface finishes for easy installation and long-term reliability.

Grade	Ni (%)	Mo (%)	Cr (%)	Fe (%)	C (%)	Mn (%)	Si (%)	Other
Hastelloy C22	Balance	12–14	21–22	2–3	0.02	0.5	0.08	W ≤1.0, Co ≤1.0
Hastelloy C276	Balance	15–17	16–17	4	0.02	0.5	0.08	W ≤1.0, Co ≤1.0

Property	Hastelloy C22	Hastelloy C276
Density (g/cm³)	8.9	8.9
Melting Point (°C)	1360–1390	1330–1390
Thermal Conductivity (W/m·K)	10	10
Electrical Resistivity (µΩ·m)	1.2	1.2

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
Hastelloy C22	690–785	240–350	40	150–200
Hastelloy C276	690–785	240–350	40	150–200

Enquire Now

Hastelloy Pipes and Tubes

Overview

Technical Specifications of Hastelloy Pipes and Tubes

Standards:

Grades Available:

Size Range:

Schedule / Wall Thickness:

Forms:

End Finish:

Surface Finish:

Chemical Properties Of Hastelloy Pipes and Tubes

Physical Properties of Hastelloy Pipes and Tubes Property Hastelloy C22 Hastelloy C276 Density (g/cm³) 8.9 8.9 Melting Point (°C) 1360–1390 1330–1390 Thermal Conductivity (W/m·K) 10 10 Electrical Resistivity (µΩ·m) 1.2 1.2

Mechanical Properties Of Hastelloy Pipes and Tubes

Types Of Hastelloy Pipes and Tubes We Offer

Hastelloy Seamless Pipes

Hastelloy Seamless Tubes

Hastelloy Welded Pipes

Hastelloy Welded Tubes

Hastelloy EFW Pipes and Tubes

Hastelloy ERW Pipes and Tubes

Materials We Offer

FAQ

Why choose Steelvron as your Hastelloy Pipes & Tubes Supplier?

Which grades of Hastelloy Pipes & Tubes do you supply?

Hastelloy C22 and Hastelloy C276.

What is the size range available?

Can Steelvron supply customized Hastelloy Pipes & Tubes?

Why Choose Us?

Global Expertise

Complete Range

Certified Quality

International Standards

Custom Solutions

Worldwide Reach

Physical Properties of Hastelloy Pipes and Tubes

Property

Hastelloy C22

Hastelloy C276

Density (g/cm³)

8.9

8.9

Melting Point (°C)

1360–1390

1330–1390

Thermal Conductivity (W/m·K)

10

10

Electrical Resistivity (µΩ·m)

1.2

1.2
